Introduction

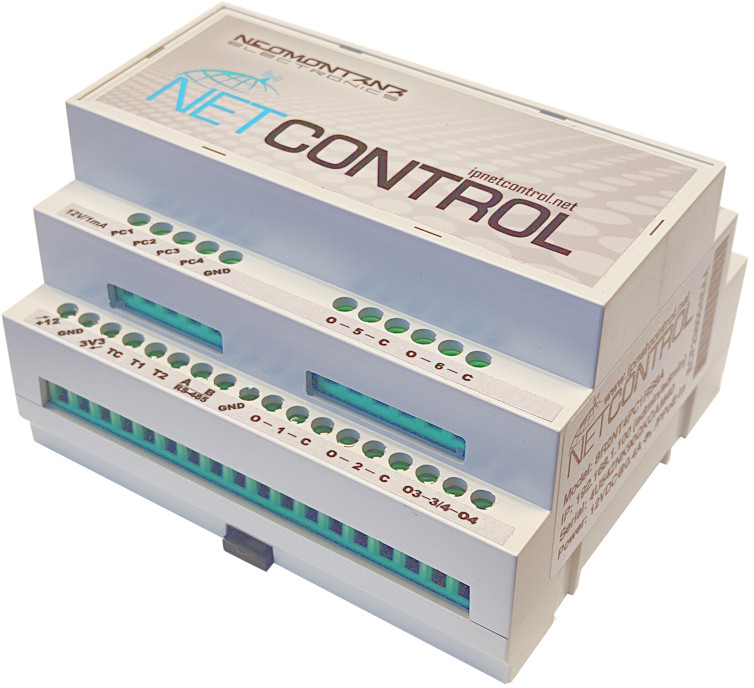

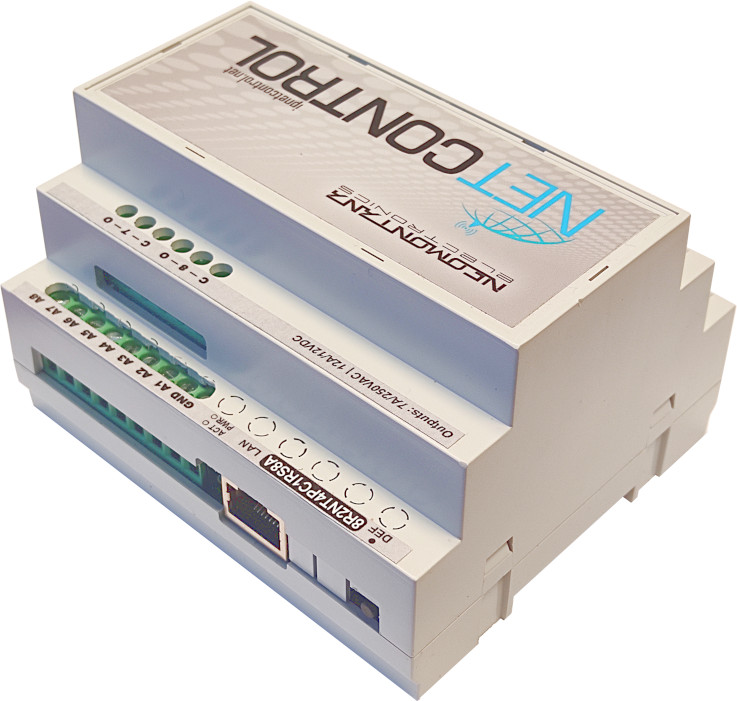

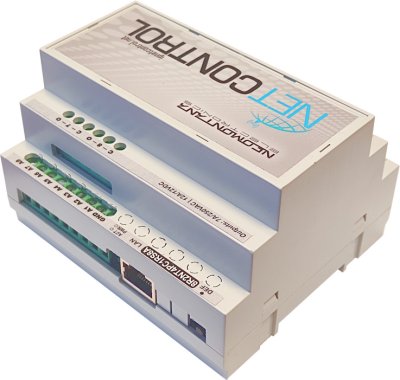

The model offers a rich combination of input-output ports in a housing for DIN rail mounting and a "two-story" configuration. There are 4 channels available for counting pulses from energy, flow (water, gas) and other measuring devices, which are equipped with a standard >60ms pulse output (optocoupler output). In addition, there are inputs for NTC temperature sensors (TNS010), as well as RS485 port. The standard 8 alarm (analog) inputs and 8 relay outputs are provided. All input-output circuits are provided on screw terminals.
The model supports "Passive PoE In" - it can be powered with (11-15)VDC through the free pairs of the UTP cable: 4/5='+', 7/8='-'
The model comes standard with a "ModBus Master" software module!
You can open a comparison table of different models from here.

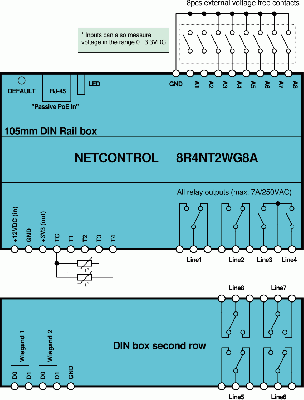

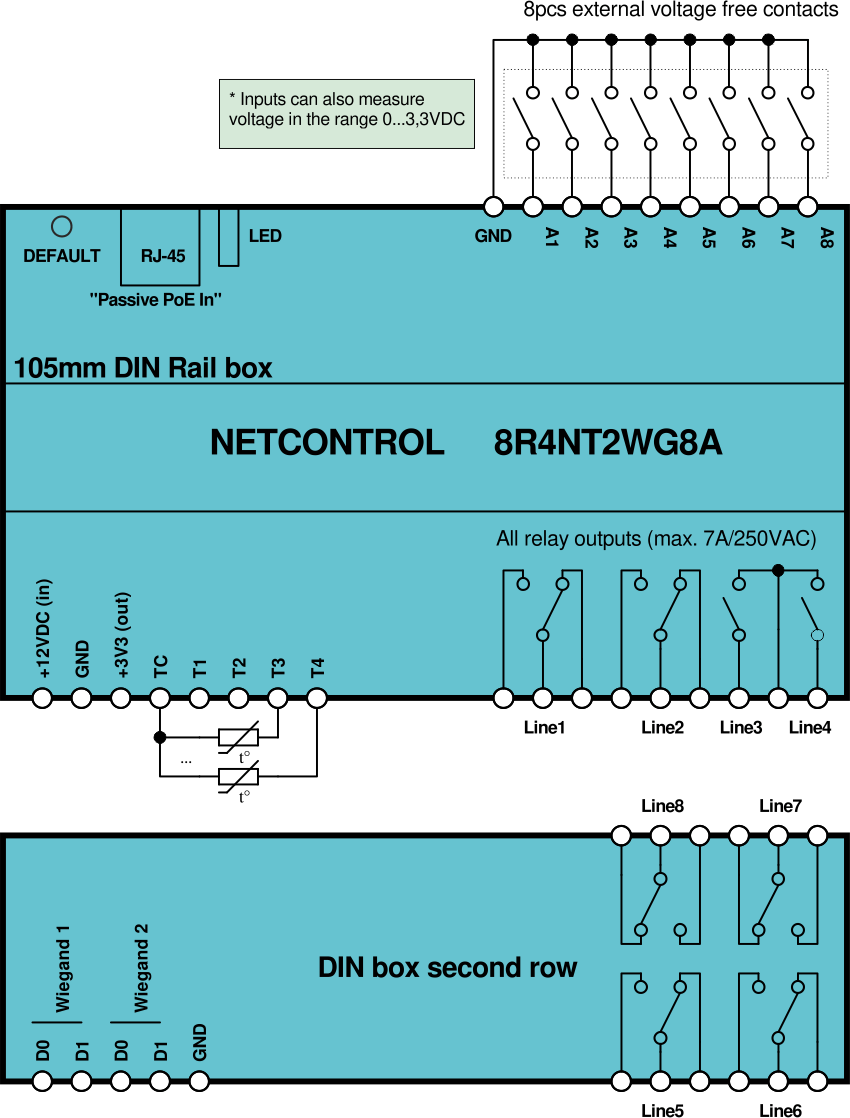

Input-output channels in NetControl 8R2NT4PC1RS8A
- 4 channels for pulse counting of electricity, water, gass, etc. meters
- RS485 interface 1pc.
- switch on-off/reboot (relay 6xSPDT + 2xN.O.) of up to 8 appliances for up to 7A/240VAC (with ability of automatic reboot on PING lost to 8 IP addressеs)
- 2 input for NTC temperature sensor (TNS010)
- 8 alarm inputs for mechanical contact/button or AC voltage detector VDS300 for signalization (SNMP trap,MQTT, SPC Cloud) of events. Other sensors also possible to connect here, as inputs are analog type.
- Housing made of light gray ABS V0 (self-extinguishing); dimensions 105x65x90mm
Basic functions and network protocols supported
- 10/100 BASE-T Ethernet (Auto MDI/MDIX) with differential overvoltage surge protections
- Supported protocols ARP/DHCP/ICMP/IP/TCP/DNS/SNTP/SNMP/TFTP client/802.1q VLAN
- Configuration and management protocols: HTTP/MQTT/SNMPv1/ModbusTCP/SPC Cloud
- WEB access to all parameters and functions
- SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions
- MQTT events and SNMP traps generation on input change
- Flexible user-defined system of sequences of actions (Macros)
- Start of macros on analog input change (Automation)
- Start of Macros on PING lost to 8/24 IP addresses (PING monitor)
- Real-time software clock (RTC) with the ability to start Macros at user-defined time
- "Moving Average" filter for analog inputs
- Manual and impulse mode for outputs with option to store last state in non-volatile memory
- Firmware update via Web/TFTP/SPC Cloud
Applications
- Remote energy measurement with 4 channels for pulse counting of electricity, water, gass, etc. meters
- RS-485 <-> TCP / MQTT data transfer. Modbus protocol supported.
- "House/Room Controller" for hotels, guest houses, etc.
- Access control systems with remote control/access over IP
- Automation systems with remote access via the Internet
- IP alarm system, such as panic buttons in hotels or security of telecommunication cabinets.
- restart (automatically in case of PING loss / manually) of network equipment (routers, ADSL modems, servers, etc.)
- general purpose 8 channel relay module with Web/SNMP/MQTT/SPC Cloud/ModbusTCP control
- Remote temperature monitoring systems
Firmwares/applications with RS-485 interface
Firmware "Electricity prices/ModbusMaster MOD"
Special firmware with access to IBEX electricity prices - allows automation of photovoltaic systems according to prices. The addition of ModbusMaster module allows direct communication with inverters via RS485 or TCP
Firmware "ModbusMaster"
Access to up to 16 registers via ModbusRTU protocol over RS485 or TCP. Data can be included in automation or transferred over MQTT. * Default firmware for RS485 models!
Energy measurement at up to 16 points via PZEM 016 modules
The PZEM-016 is connected via a two-wire RS-485 line. The software allows addressing of up to 16 modules. IMPORTANT !!! NetControl expects the modules to have addresses from 1 to 16! The modules must be pre-programmed with the appropriate address (eg via USB-RS485 dongle).
Data from PZEM-016 - power consumption, load power, voltage, current, frequency and power factor, are available via the Web and MQTT.16 PZEM devices are read every about 35 seconds. If the WEB data is updated more frequently, the latest current measurement will be displayed. Addresses where there are no PZEM modules - will not be displayed on the WEB and no MQTT data will be sent for them.
Gathering data from ASCI power meters
This firmware allows the reading of data from ASCI electricity meters (equipped with RS-485/Modbus communication interface) and the transfer of the total reading (sum of all tariffs) via MQTT. All possible 127 addresses are scanned.
