Introduction

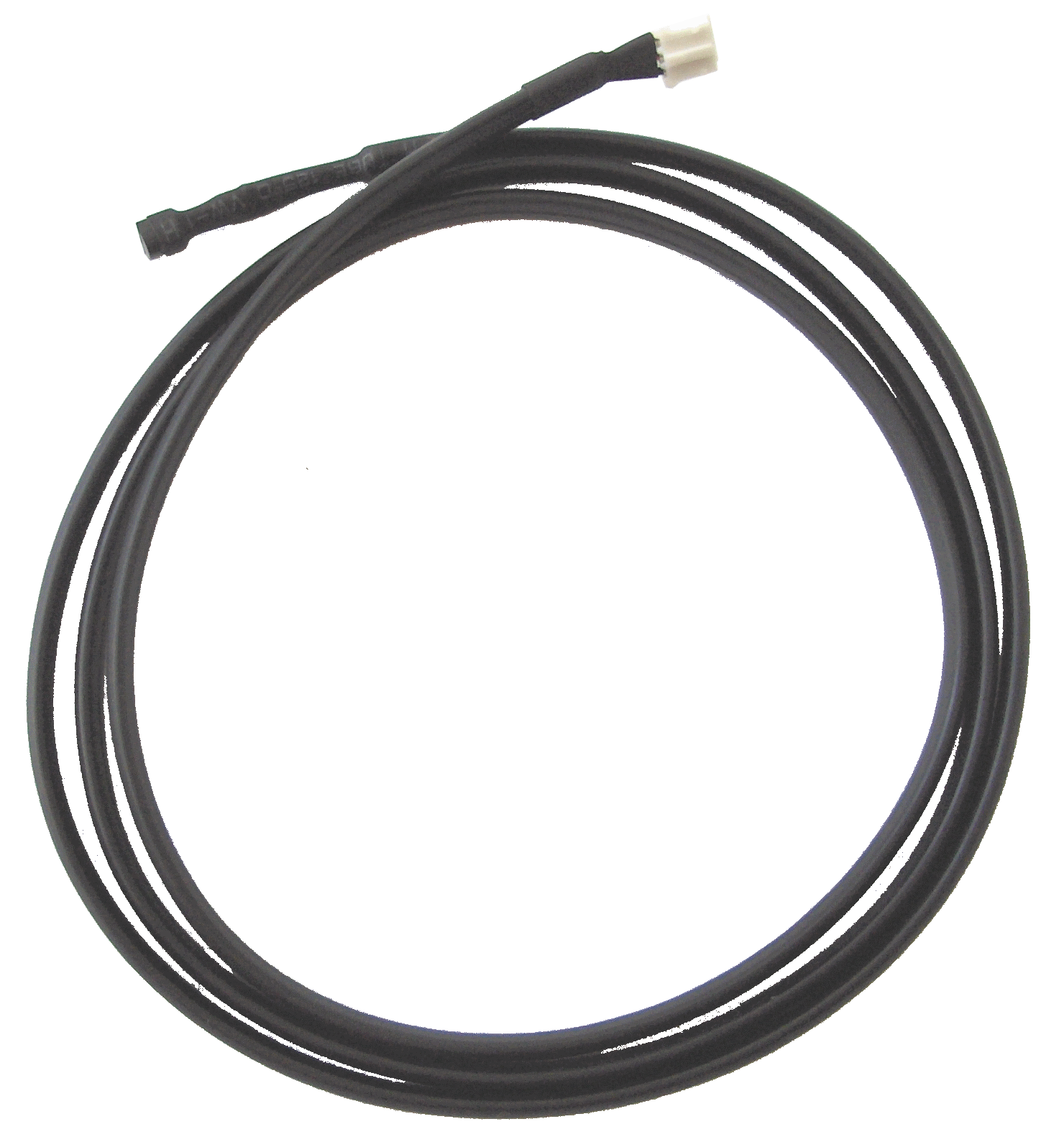

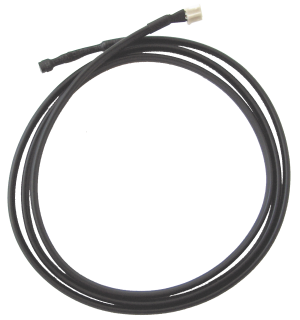

Temperature snesor TNS010 is standard NTC resistor for precise temperature measurement. Can be connected only to NetControl models with dedicated NTC inputs.!
Technical parameters
| Parameter | Value |
|---|---|
| Nominal resistance (@25°) | 10k ±1% |
| Working range | -30° до +90°C |
| Ｂ value | 3435K ± 1％ |
| Response time (to 63%) | ~10s |
| NetControl measurement precision | ±0.1°C (при 0° до 70°C) |
| Cable length (AWG30) | 15cm |
