This model is no longer manufactured!

Introduction

This model is specially designed to fulfill the needs of ISPs (Internet Service Providers) covering the most frequent demand of control and monitoring blocks in city networks. It is very convеnient for integration inside local telecommunication racks/cabinets in systems with centralized powering trough the free pairs in UTP/FTP cables (simple PoE).

You can open a comparison table of different models from here.

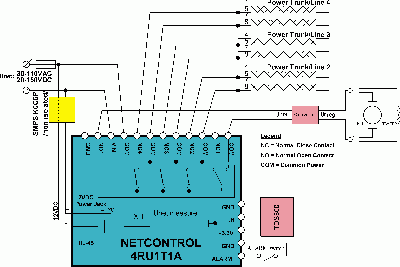

Input-output channels in NetControl 4RU1T1A:

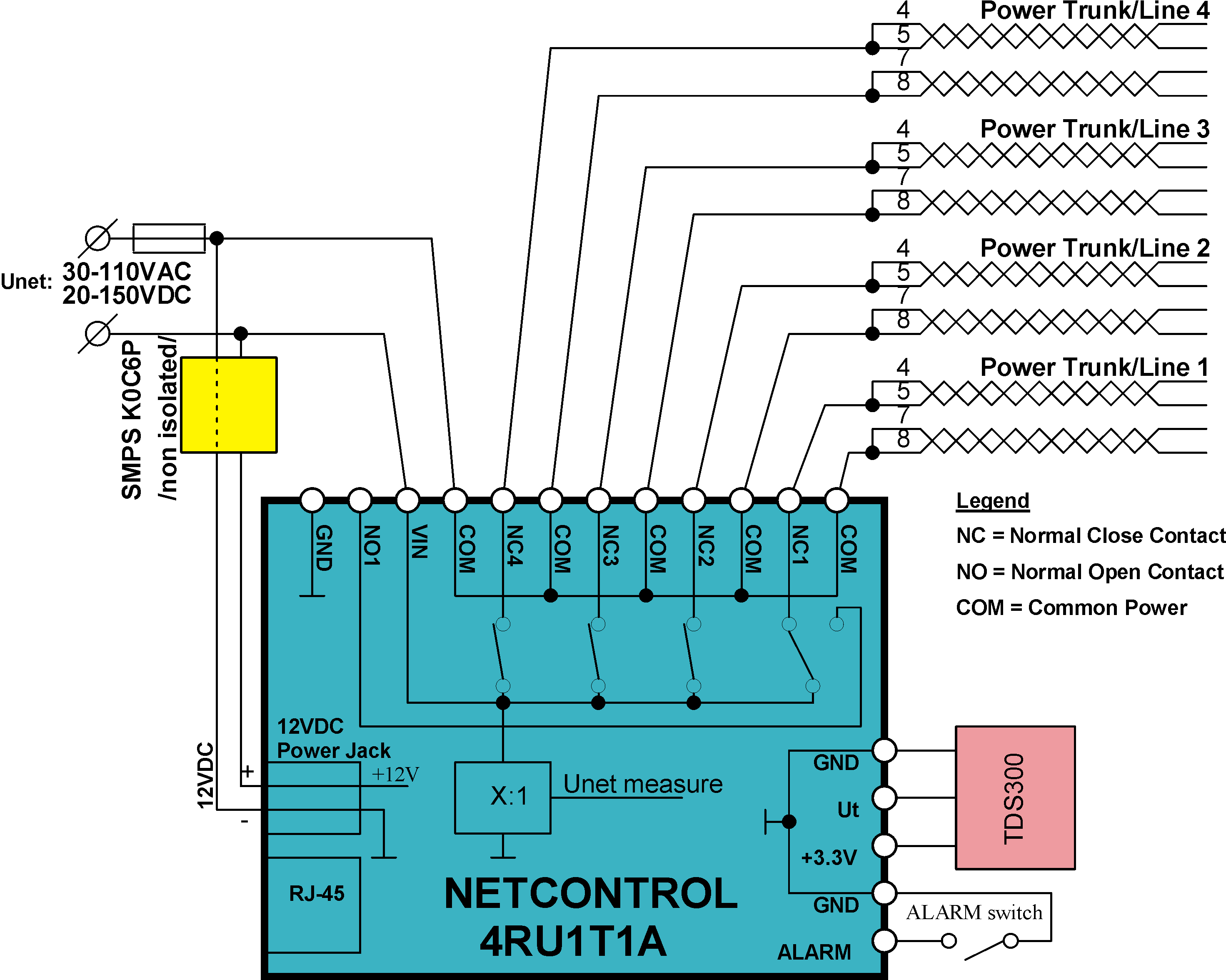

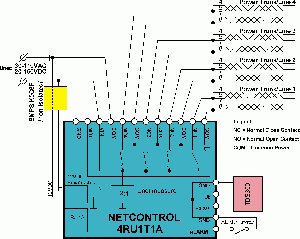

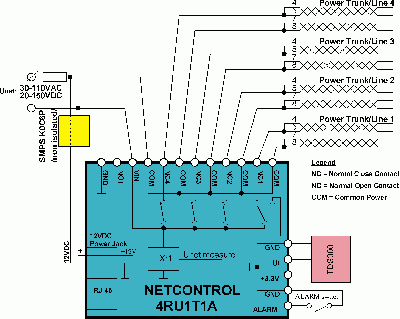

• reboot (normal close relay contact) of up to 4pcs branches (with ability of automatic reboot on PING lost to on IP address)

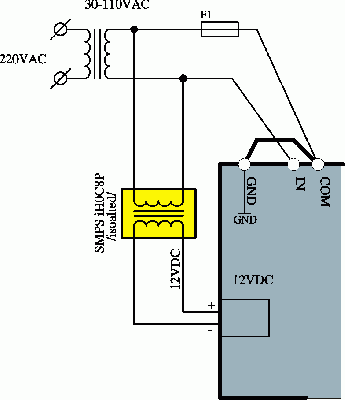

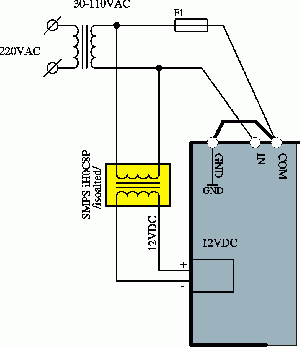

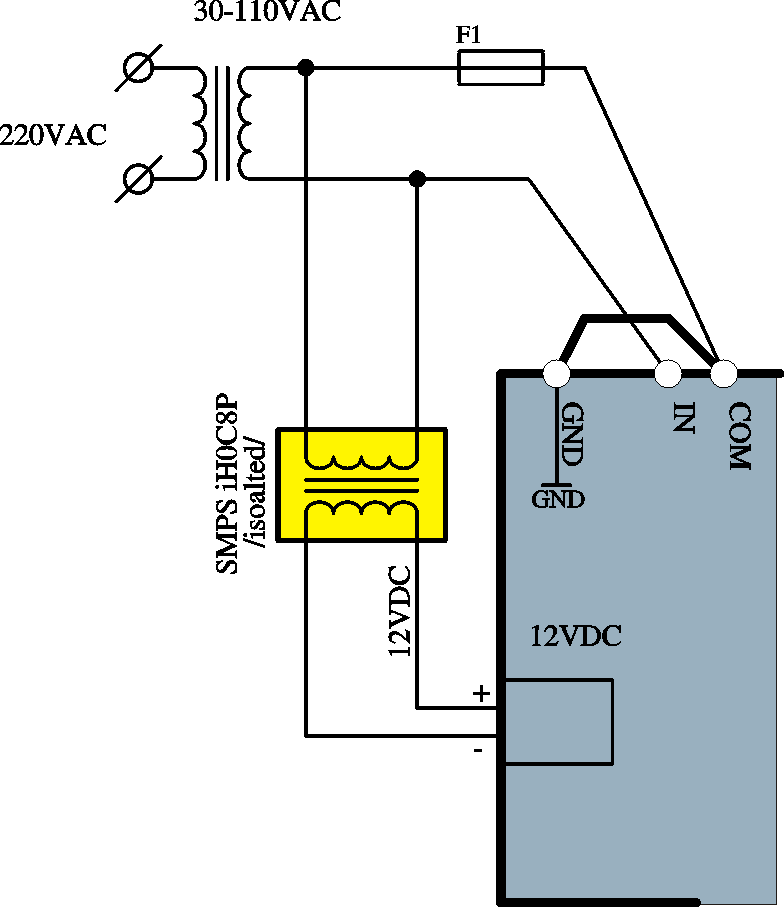

• measurement of power supply voltage of the centralized system (до 110VAC/160VDC)

• measurеment of rack/cabinet temperature or humidity (with external sensor TDS300 or HDS300)

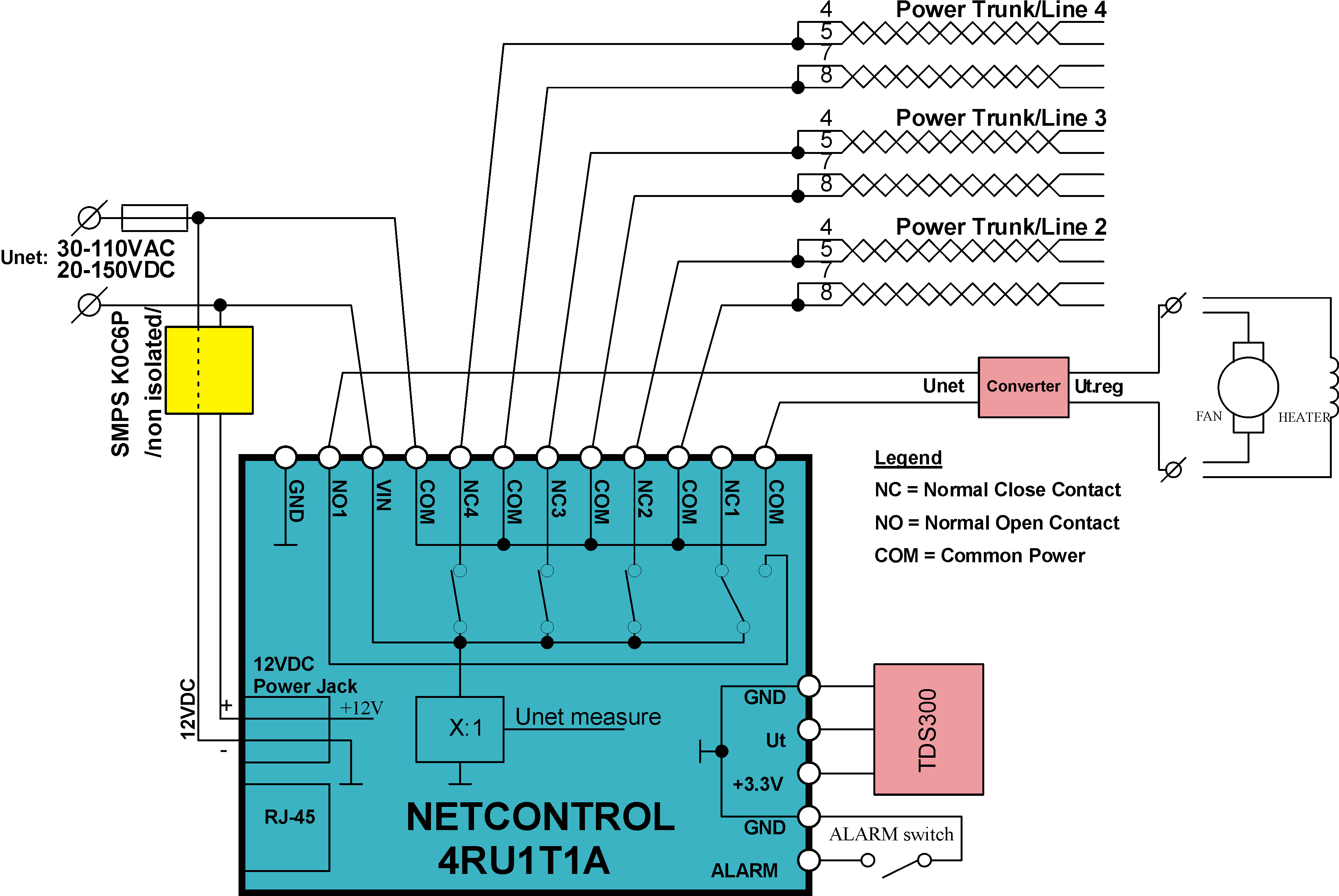

• integrated "theremoregulator" mode between temperature sensor and of the relay channels

• alarm input (for mechanical contact/button) for signalization (SNMP trap) of rack/cabinet burglary

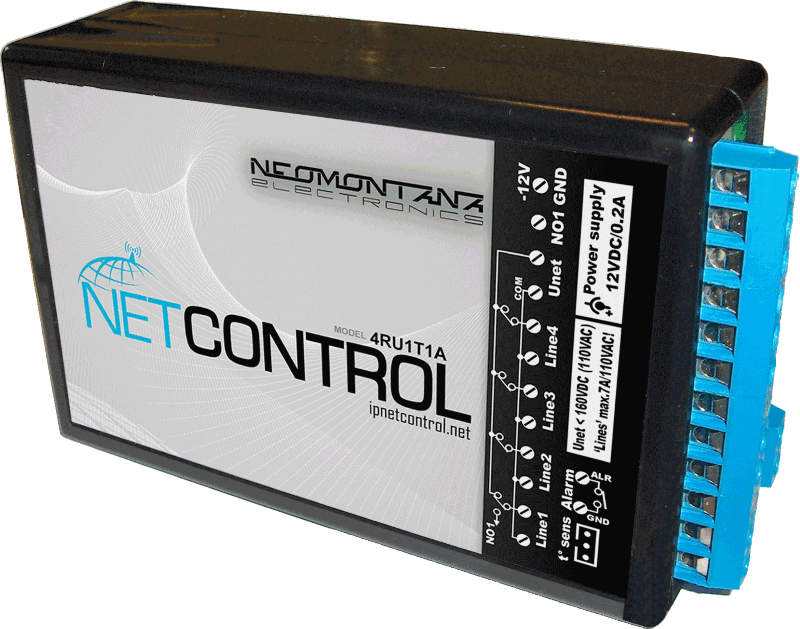

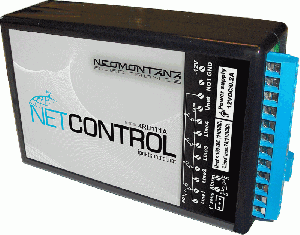

• plastic case dimensions 118x72x35mm

Basic network function (for more see user manual)

• 10 BASE-T Ethernet (NO CrossOver Autodetect);

• Supported protocols ARP/DHCP/ICMP/TCP/IP/SNMP/TFTP client/WEB server

• 802.1q VLAN support

• SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions;

• SNMP traps generation on input change;

• Output signal generation on analog input change;

• WEB access to all parameters and functions;

• TFTP client for firmware update

Applications

• control and monitoring in quarter and building telecom racks/cabinets

• automatic reboot on PING lost of hung home network equipment (ADSL modem, routers, APs)
• general purpose 4 channel relay module with Web/SNMP control

• IP guarding

• IP thermometer and thermoregulator; IP humidity meter
