Introduction

This NetControl model is equiped with 4 channels for counting of pulses from external devices for measurement of energy, flow (water, gas) and others, which has the industry standard >80ms pulse output (opto isolated). You must setup in NetControl's interface the transformation constant and its current display value. This way you get a copy of the measurement device's display in NetControl's interface which can be of course accessed any time remotely via Internet or local network.

Using the cloud platform additionally you get function for callculating the real cost of used energy (via user defined tariff plans), graphical reporting of energy consumption, archives. You can also define condtions based on the current energy consumptions that will execute user define actions (including alerts or actions).

In addition to the pulse counter channels you get two SPDT relay outputs (for up to 7A/220VAC), 2 sensors inputs and 2 alaram inputs.

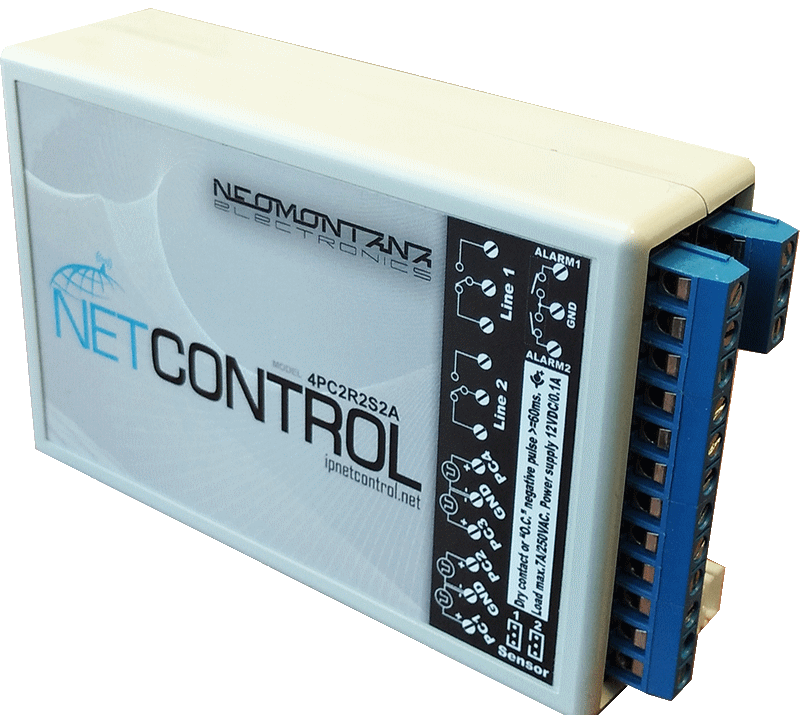

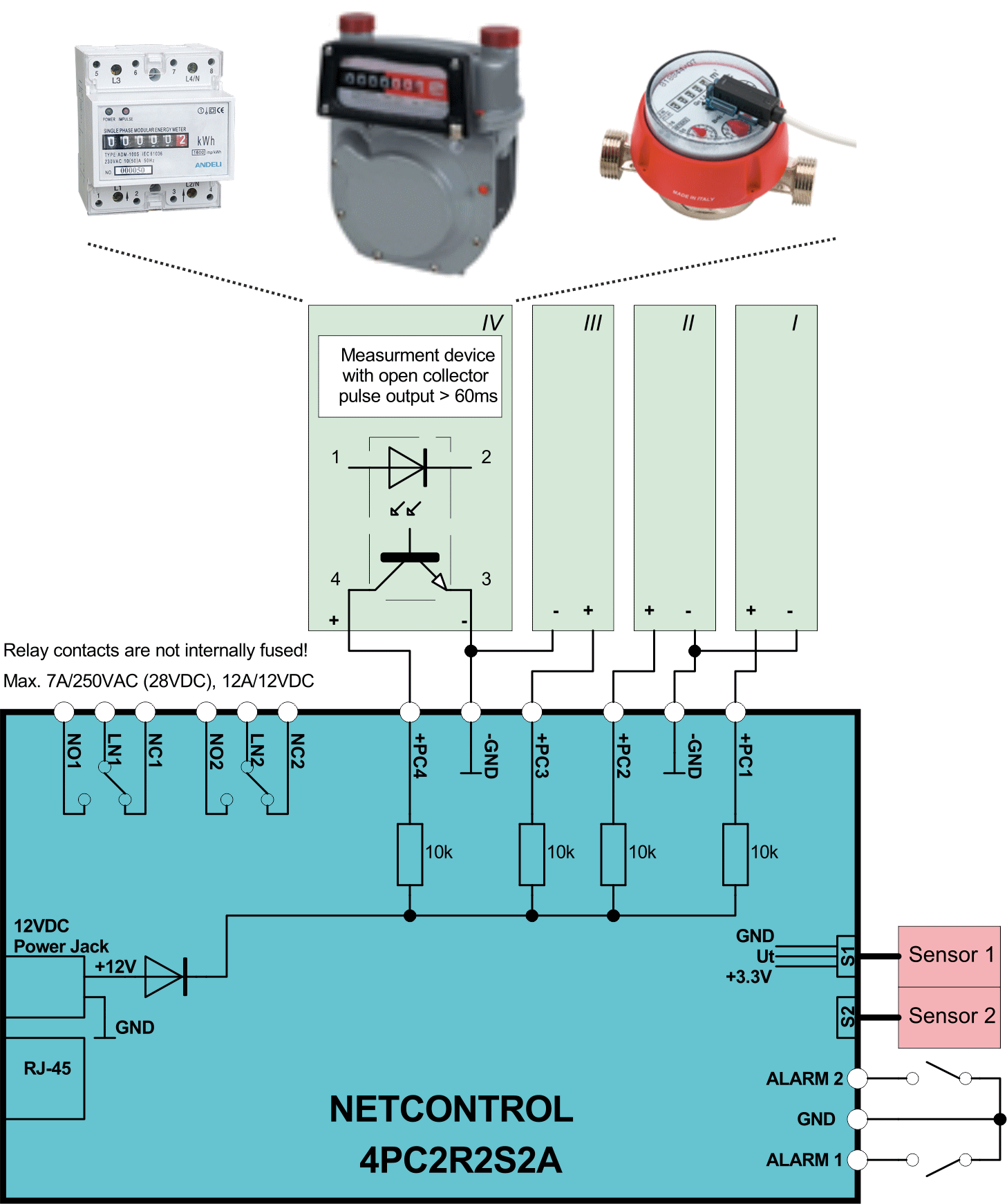

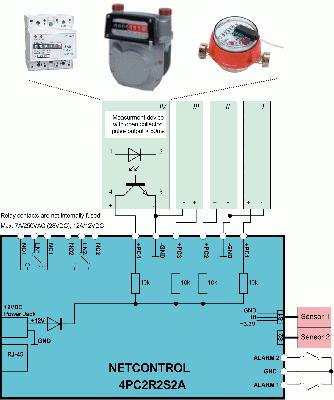

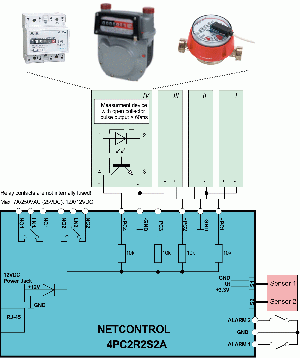

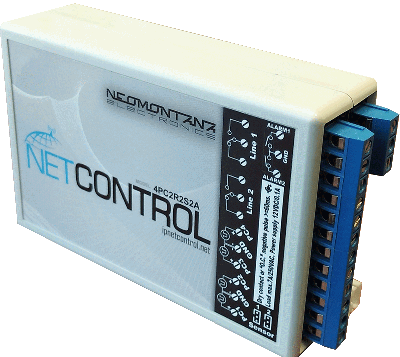

Input-output channels in NetControl 4PC2R2S2A

• Remote energy measurement with 4 channels for pulse counting of electricity, water, gass, etc. meters
• Smart House: switch on-off/reboot (SPDT relay contact) of up to 4pcs appliances for up to 7A/22VAC (with ability of automatic reboot on PING lost to 8 IP addresses)
• 2 inputs for external sensors for: temperature (via TDS300), humidity (HDS300), water (WDS300)
• integrated "theremoregulator" mode between temperature sensor and of the relay channels
• 2 alarm inputs (for mechanical contact/button) for signalization (SNMP trap, MQTT) of rack/cabinet burglary; or for AC voltage detector VDS300
• plastic case dimensions 118x72x35mm

Applications

• remote reading of devices measuring energy, gas, water (pulse output is needed)
• Reboot (automatic on PING lost/manual) of hung home network equipment (ADSL modem, routers, APs)
• "Internet controlled power socket" for 220VAC
• general purpose 2 channel relay module with Web/SNMP/MQTT control
• IP thermometer and thermoregulator; IP humidity meter
• IP guarding
