Introduction

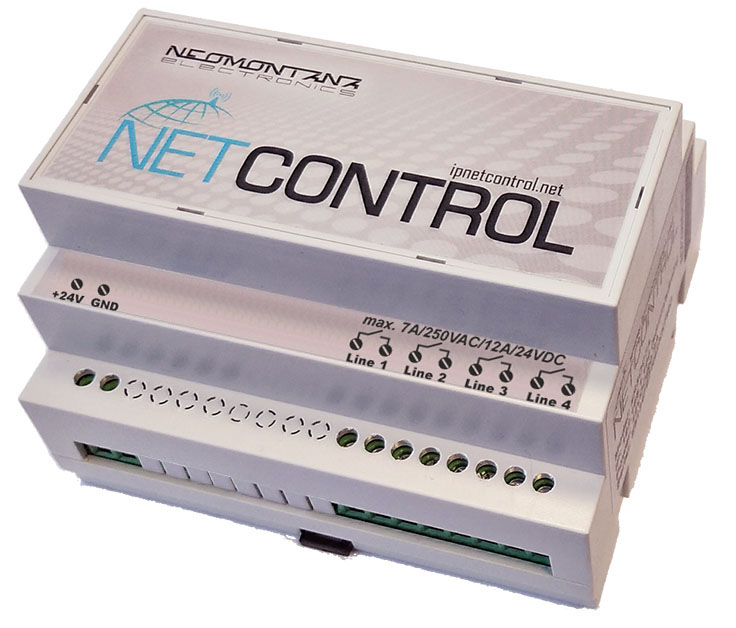

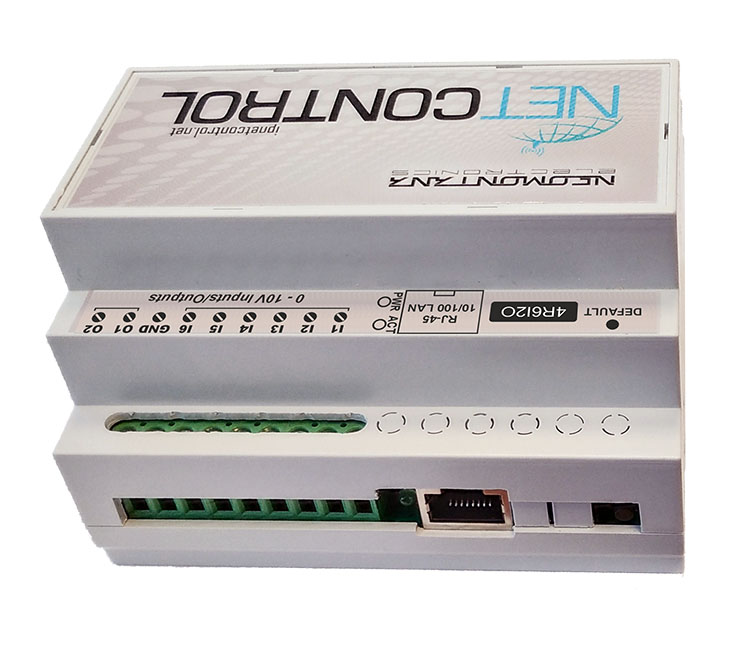

This model is equpped with a special housing for DIN rail mounting and focuses on 0-10V communication: 6 inputs and 2 outputs are available.In addition, there are 4 relay outputs with normally open contacts. The device is powered by 24VDC for easier integration into existing automation systems.

You can open a comparison table of different models from here.

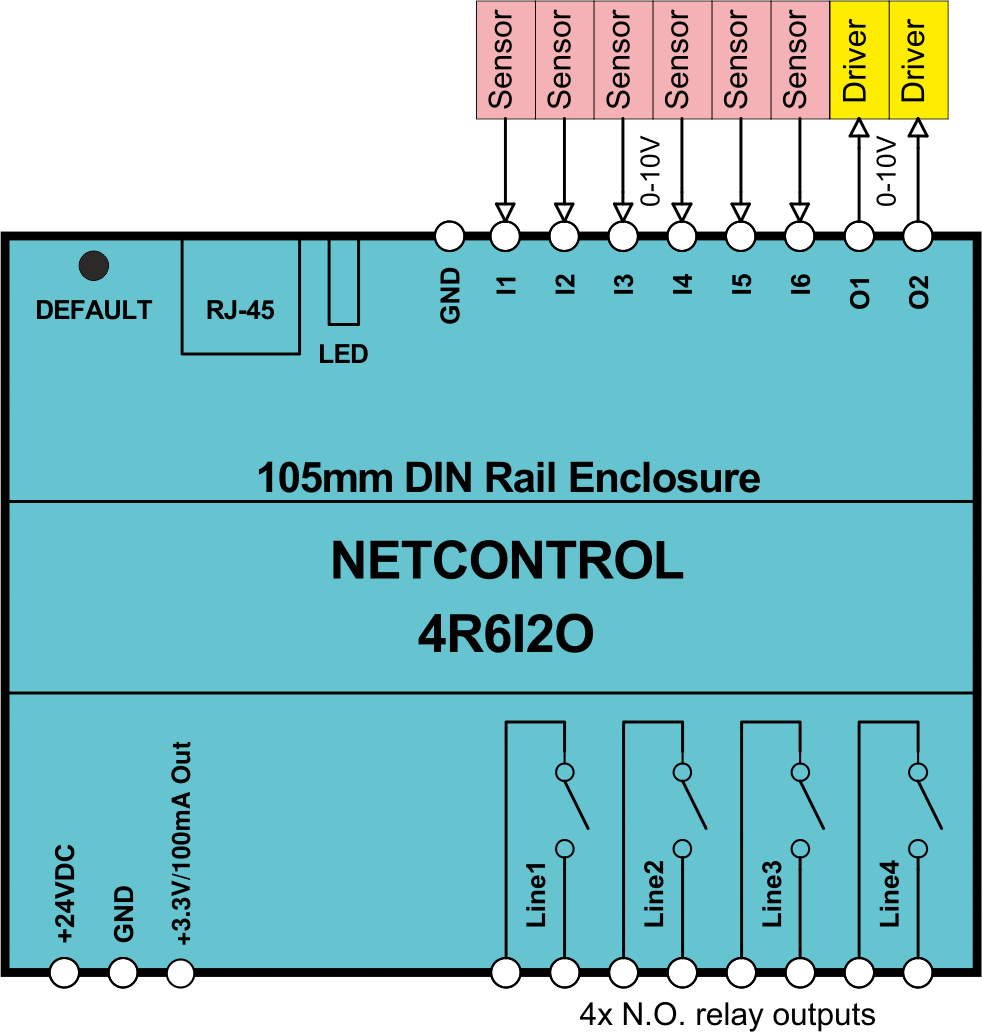

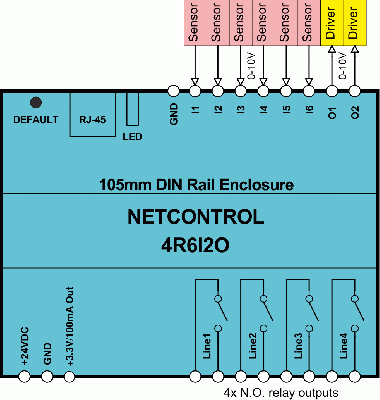

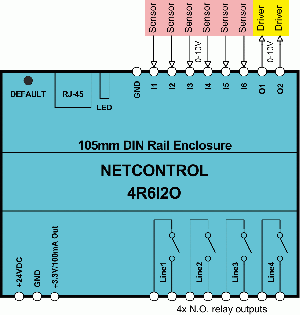

Input-output channels in NetControl 4R6I2O

  • 4 normally open relay outputs for load up to 6A/220VAC (12A/24VDC)
  • 6pcs. analog 0 - 10V inputs with 12-bit ADC. Input resistance> 5kOhm. It is permissible to connect the input to the supply voltage (24V) to use the input as an "alarm" (for security this can be done through a series resistor of 5-10k).
  • 2 pcs. analog outputs 0 - 10V (50mV / step, 200 steps) with short-circuit protection. Minimum load resistance 2.2kOhm. at the output (I <12mA).
  • Power supply: 24VDC (18-28VDC), consumption <100mA
  • Housing made of light gray ABS V0 (self-extinguishing); dimensions 105x65x90mm

Basic network function (for more see user manual)

  • 10/100 BASE-T Ethernet (Auto MDI/MDIX);

  • Supported protocols ARP/DHCP/ICMP/TCP/IP/SNTP/SNMP/TFTP client/WEB server/MQTT/SPC Cloud

  • 802.1q VLAN support

  • SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions;

  • SNMP traps and MQTT events generation on input change;

  • Output signal generation on analog input change;

  • Flexible user-defined system of sequences of actions (Macros)
  • Real-time software clock (RTC) with the ability to start Macros at user-defined time
  • WEB access to all parameters and functions;

  • TFTP client for firmware update



Applications

  • Access and control of sensors / drivers with 0-10V interface via Internet
  • Automation systems with remote access via the Internet
  • IP alarm system, such as panic buttons in hotels or security of telecommunication cabinets.
  • restart (automatically in case of PING loss / manually) of network equipment (routers, ADSL modems, servers, etc.)
  • general purpose 4 channel relay module with Web/SNMP/MQTT/SPC Cloud control

User manual and most recent firmware for NetControl

um icon User Manual, SNMP MIB

  NetControl Series_UM-2.24_en.pdf (07.2021) (reflects changes in latest firmware v5.xx)

  NetControl SNMP MIB v1.5 (11.2019)

firmware Latest firmware image (also publicly available by TFTP at IP address 84.40.112.77)

  Firmware v5.36.zip (07.2021)

IMPORTANT! Before updating, please read "FirmwareRevisionHistory.txt" from archive for information on how the new version will affect your current settings!

Archives for old hardware version (3.xx)

  NetControl Series_UM-2.13_en.pdf

  Firmware v3.17.zip (11.2017)
