This model is no longer manufactured and is replaced by NetControl 8R2S1A.


Introduction

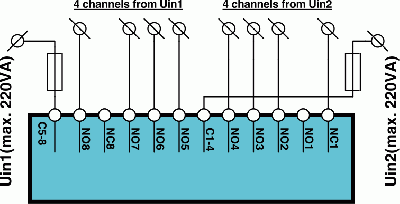

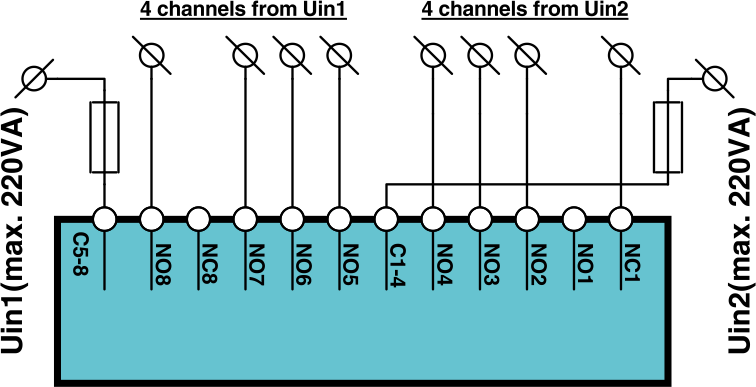

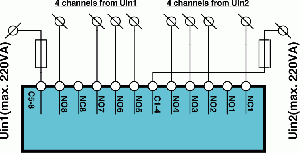

This model is designed for general purpose use for remote control and measuring trough Internet. It has 8 relay channels witn NO (normal open) contacts that can switch up to 250VAC/5A. Relays are combined in two groups with common power, which allows simultaneous switching of different voltages (e.g. 220VAC and 12VDC). In each group there is one channel with access to its NC (normal closed) contact.

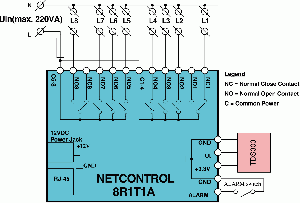

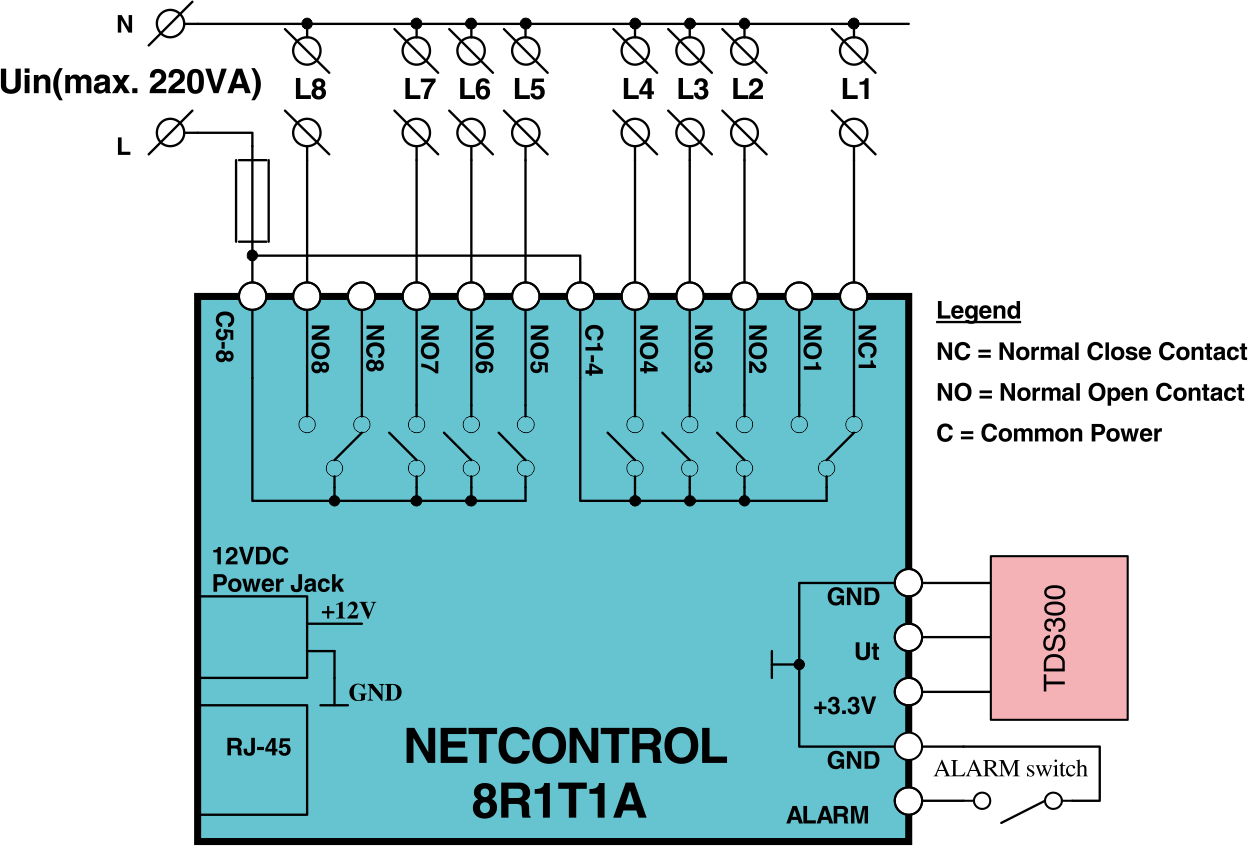

Input-output channels in NetControl 8R1T1A:

  • switch on-off/reboot (normal close relay contact) of up to 8pcs appliances for up to 5A/220VAC (with ability of automatic reboot on PING lost to up to 8 IP address)

  • measurеment of rack/cabinet temperature or humidity (with external sensor TDS300 or HDS300)

  • integrated "theremoregulator" mode between temperature sensor and of the relay channels

  • alarm input (for mechanical contact/button) for signalization (SNMP trap) of rack/cabinet burglary

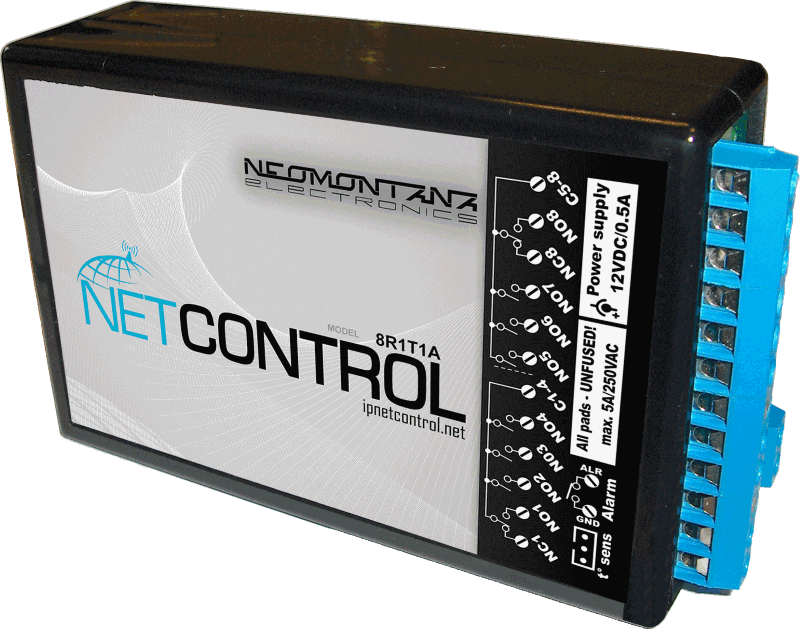

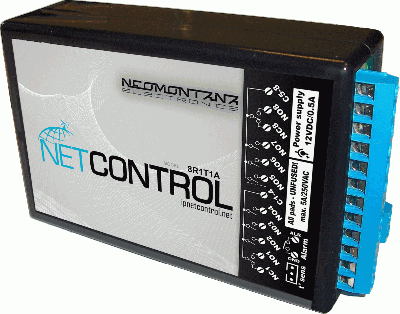

  • plastic case dimensions 118x72x35mm

Basic network function (for more see user manual)

  • 10 BASE-T Ethernet (NO CrossOver Autodetect);

  • Supported protocols ARP/DHCP/ICMP/TCP/IP/SNMP/TFTP client/WEB server

  • 802.1q VLAN support

  • SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions;

  • SNMP traps generation on input change;

  • Output signal generation on analog input change;

  • WEB access to all parameters and functions;

  • TFTP client for firmware update

Applications

  • Reboot (automatic on PING lost/manual) of hung home network equipment (ADSL modem, routers, APs)
  • "Internet controlled power socket" for 220VAC with 8 sockets

  • general purpose 8 channel relay module with Web/SNMP control
  • IP guarding

  • IP thermometer and thermoregulator; IP humidity meter

User manual and most recent firmware for NetControl

um icon User Manual, SNMP MIB

  NetControl Series_UM-2.25_en.pdf (09.2021) (reflects changes in latest firmware v5.xx)

  NetControl SNMP MIB v1.7 (09.2021)

firmware Latest firmware image (also publicly available by TFTP at IP address 84.40.112.77)

  Firmware v5.38.zip (10.2021)

IMPORTANT! Before updating, please read "FirmwareRevisionHistory.txt" from archive for information on how the new version will affect your current settings!

Archives for old hardware version (3.xx)

  NetControl Series_UM-2.13_en.pdf

  Firmware v3.17.zip (11.2017)
