Introduction

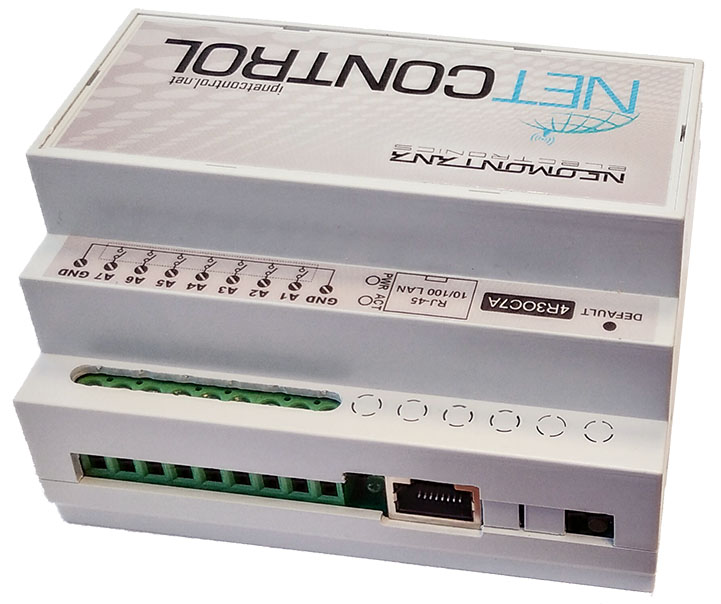

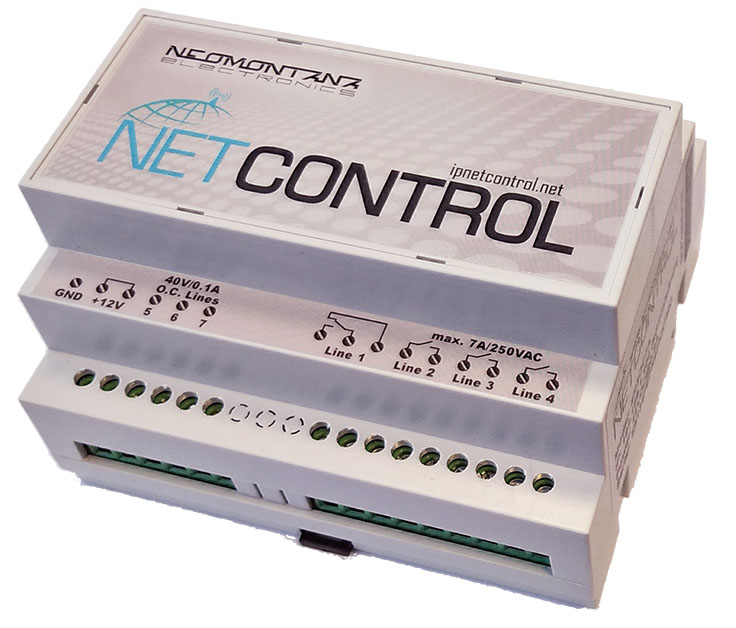

This model is equipped with a special housing for mounting on a standart DIN rail. 7 alarm inputs are available; 4x relay outputs + 3x "open collector" type outputs. All input-output circuits are accessible via screw terminals.

You can open a comparison table of different models from here.

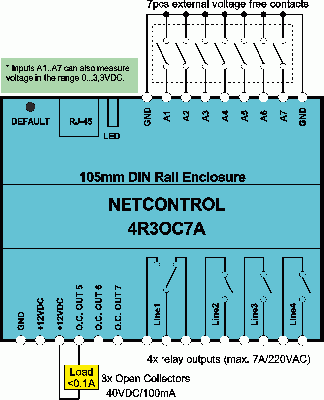

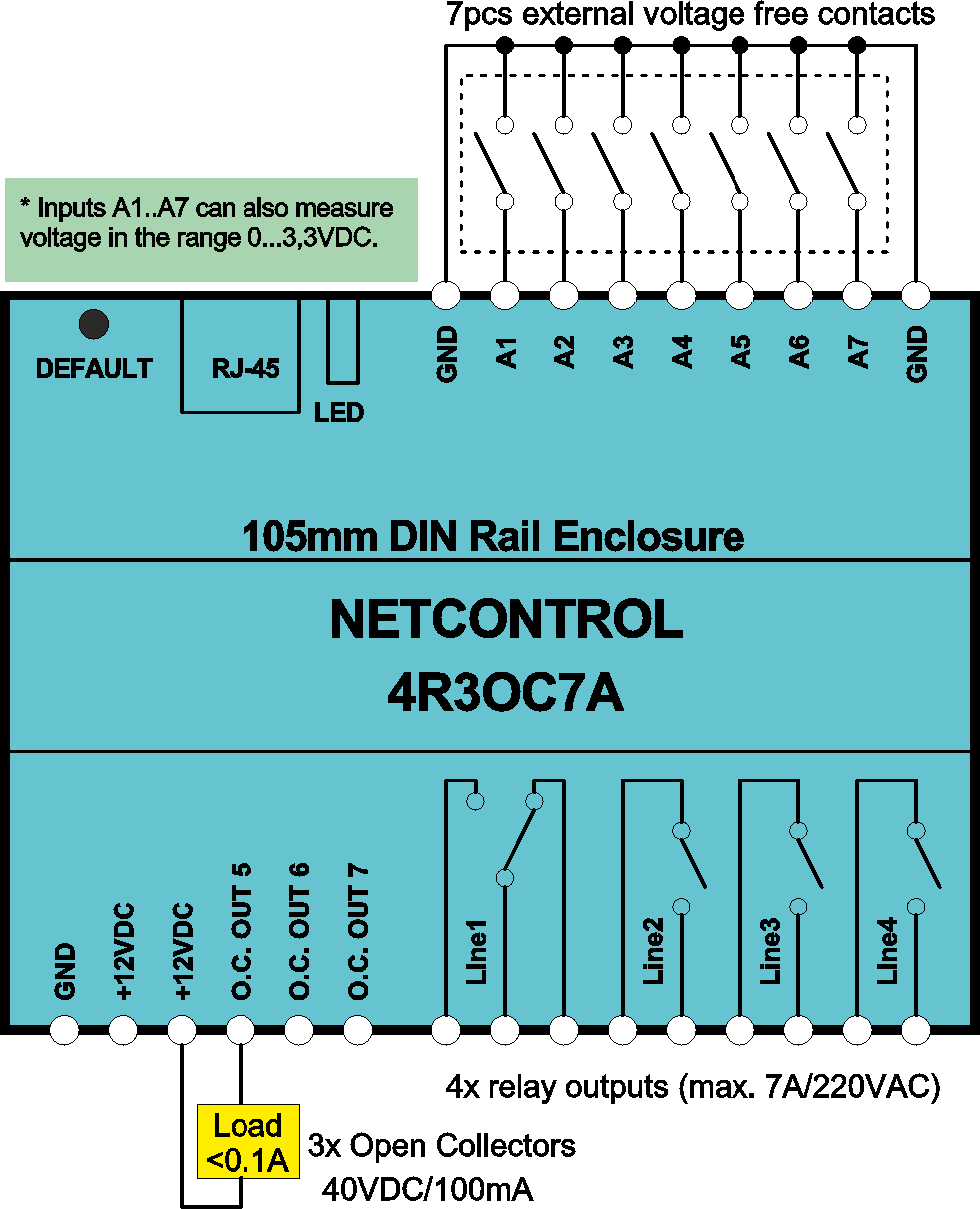

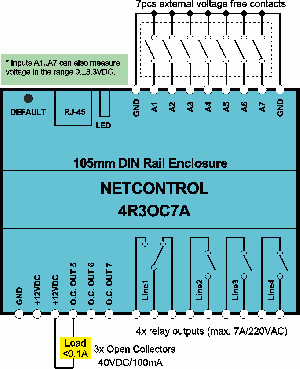

Input-output channels in NetControl 4R3OC7A

  • switch on-off/reboot (normal open + one SPDT relay contacts) of up to 4 appliances for up to 7A/220VAC (with ability of automatic reboot on PING lost to 8 IP addressеs)

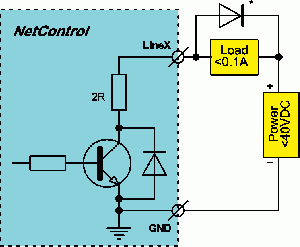

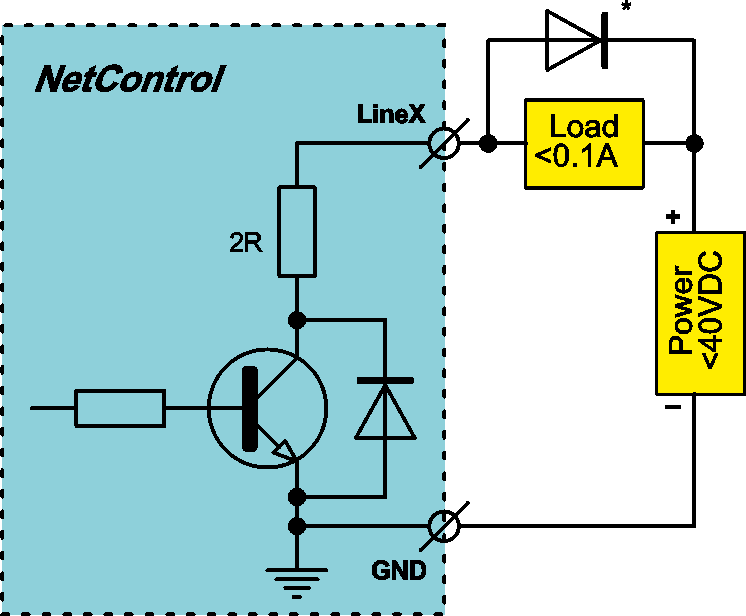

  • 3 outputs "open collector" 40VDC/100mA for control of low power loads - indicators, relays, etc.
  • 7 alarm inputs for mechanical contact/button or AC voltage detector VDS300 for signalization (SNMP trap,MQTT, SPC Cloud) of events

  • Housing made of light gray ABS V0 (self-extinguishing); dimensions 105x65x90mm

Basic network function (for more see user manual)

  • 10/100 BASE-T Ethernet (Auto MDI/MDIX);

  • Supported protocols ARP/DHCP/ICMP/TCP/IP/SNTP/SNMP/TFTP client/WEB server/MQTT/SPC Cloud

  • 802.1q VLAN support

  • SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions;

  • SNMP traps and MQTT events generation on input change;

  • Output signal generation on analog input change;

  • Flexible user-defined system of sequences of actions (Macros)
  • Real-time software clock (RTC) with the ability to start Macros at user-defined time
  • WEB access to all parameters and functions;

  • TFTP client for firmware update



Applications

  • "Room Controller" for hotels, guest houses, etc.
  • Automation systems with remote access via the Internet
  • IP alarm system, such as panic buttons in hotels or security of telecommunication cabinets.
  • restart (automatically in case of PING loss / manually) of network equipment (routers, ADSL modems, servers, etc.)
  • general purpose 4 channel relay module with Web/SNMP/MQTT/SPC Cloud control

User manual and most recent firmware for NetControl

um icon User Manual, SNMP MIB

  NetControl Series_UM-2.22_en.pdf (01.2021) (reflects changes in latest firmware v5.xx)

  NetControl SNMP MIB v1.5 (11.2019)

firmware Latest firmware image (also publicly available by TFTP at IP address 84.40.112.77)

  Firmware v5.31.zip (01.2021)

IMPORTANT! Before updating, please read "FirmwareRevisionHistory.txt" from archive for information on how the new version will affect your current settings!

Archives for old hardware version (3.xx)

  NetControl Series_UM-2.13_en.pdf

  Firmware v3.17.zip (11.2017)
